Pakke med 4stk 8" mellomtoner, 2 diskanter og delefilter

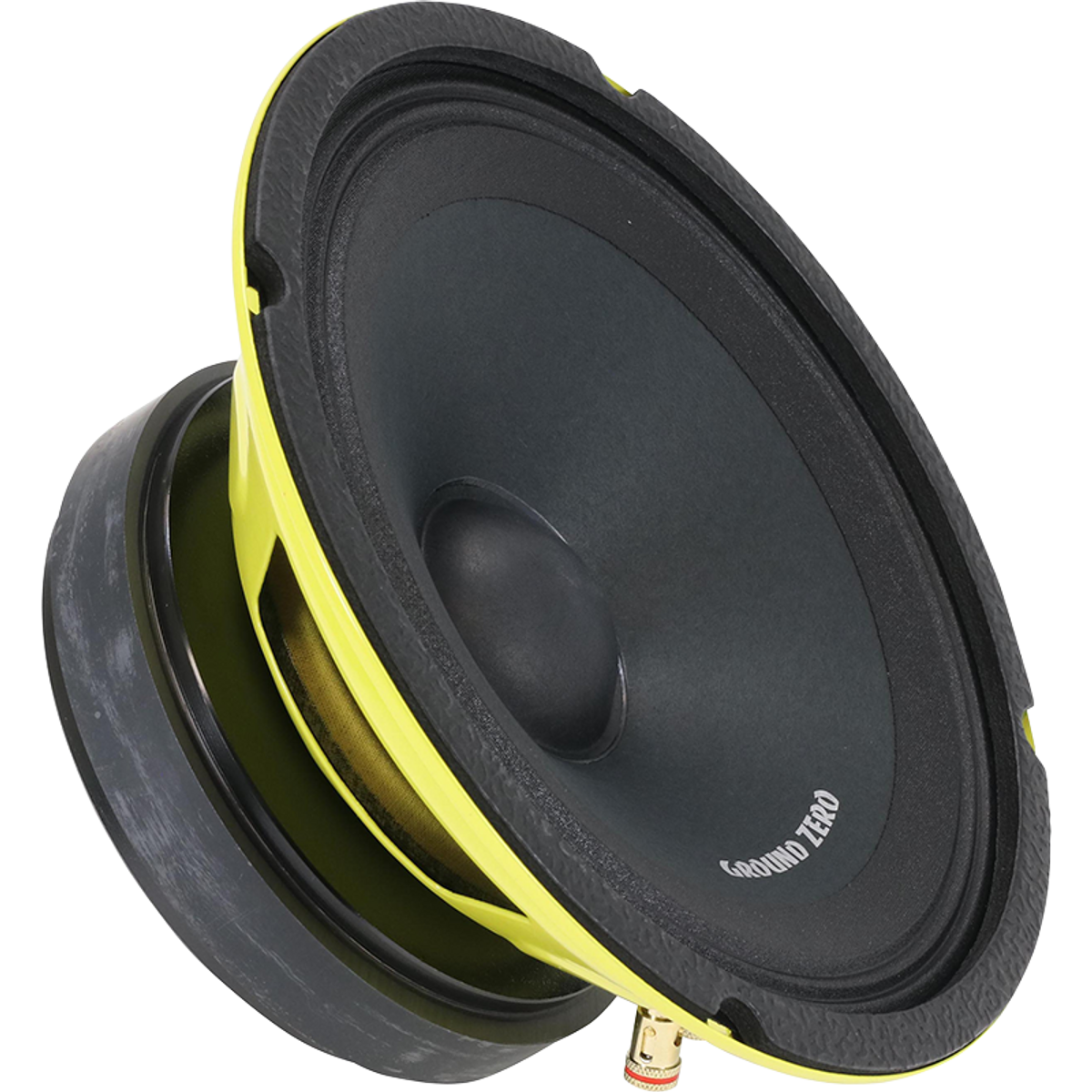

Ground Zero GZCM 8.0SPL
Diameter: 20,6 cm / 8,11"
Power handling: 150 WRMS / 400 W peak
Impedans: 4 ohm
Svingspole: 38 mm
SPL: 95 dB
Frekvensrespons 170 - 10.000Hz
Monteringshull: 182mm
Monteringsdybde: 87mm
Inkludert design grill
Brukermanual PDF
Ground Zero GZCT3000X 40W RMS
Power handling 40 WRMS
Impedance 4 Ohm
SPL 105 dB
Frequency response 4000 - 25000 Hz
Diameter of tweeter 102x102 mm
Mounting diameter of tweeter 90 mm
Mounting depth of tweeter 66 mm
Owners Manual: GZCT3000X

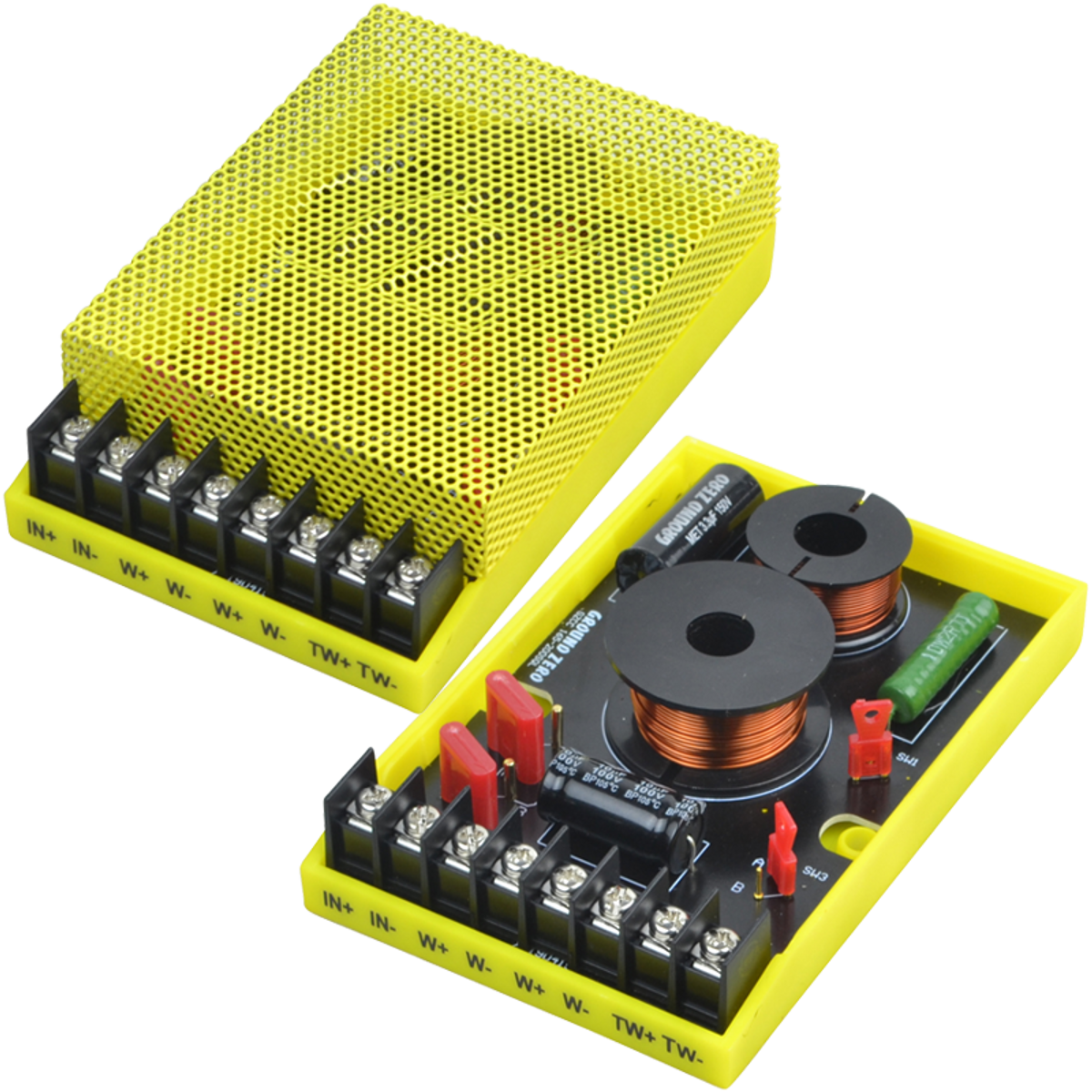

Ground Zero GZCX 165/200.2SQL
2- Way passive crossover
very flexible options
make a BIG front system using only one 2 channel amplifier!
possible combinations:
- 1 pair of woofers and tweeters
- 2 pairs of woofers and 1 pair of tweeters
- 2 pairs of woofers and 2 pairs of tweeters
Especially designed to use with Ground Zero GZCK woofers and GZCT tweeters.
