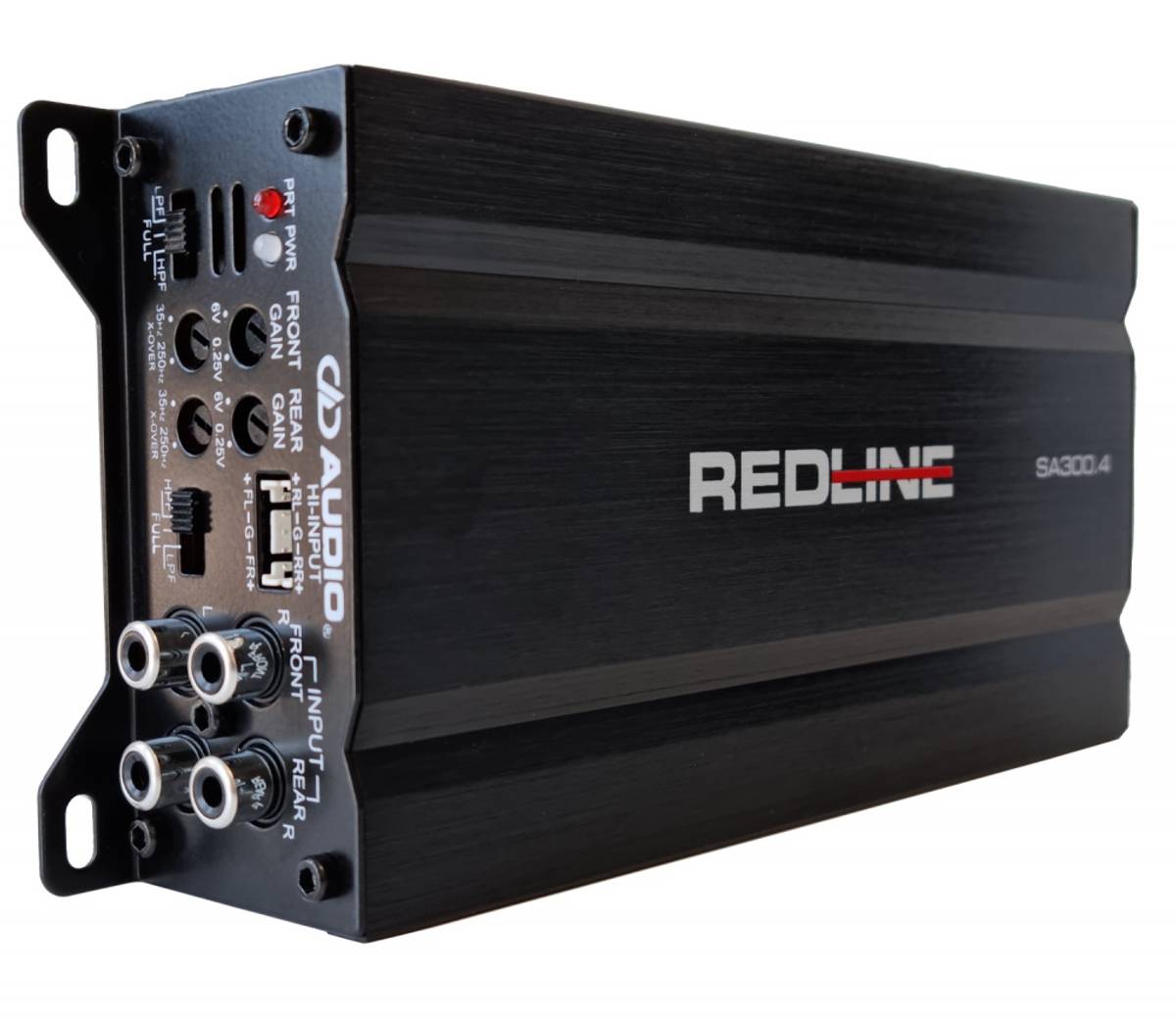

DD Audio SA300.4 is mini chassis amp designed to make space constrained installations a breeze. Don’t be fooled by its small stature in 4 ohm bridged mode this little powerhouse can produce over 2 x 120Watts - Great sound quality - Mosfet power supply amplifier - 4 gauge set screw power terminals - 12 gauge set screw speaker terminals - Variable 12dB/oct crossovers - Remote subwoofer control (SA500.1) - 5-way protection: Speaker short, thermal, overload, HI/LOW voltage, DC offset
- Mosfet power supply amplifier
- 4 gauge set screw power terminals
- 12 gauge set screw speaker terminals
- Variable 12dB/oct crossovers
- 5-way protection: Speaker short, thermal, overload, HI/LOW voltage, DC offset
Operating voltage: 9-16
Test voltage: 14.4
Output Channels: 4¨
Cont wattage @4Ohm: 4x65 / 2x120
Cont wattage @2Ohm: 4x75
Cont wattage @1Ohm: NA
Dynamic wattage: 600
Max current draw - Amps: 30
RCA input sensivity - Volts: 6 - 0.25
High level sensivity - Volts: 20 - 1.1
S/N Ratio -dB: 70
Damping factor: 10 - 3000
THD: 0.1%
Boost level: NA
High pass filter - Hz: 35 - 250
Subsonic filter - Hz: 35 -250
Low pass filter - Hz: NA
Remote subwoofer control: NA
Power wire gauge - IN: 4
Speaker wire gauge - OUT: 12
Dimensions - mm 180 x 96 x 43
Anerkjent amerikansk produsent med fokus på god kvalitet og stilrent design
